Nalu: sierra::nalu::AuxFunction Class Reference

Nalu

Nalu: a generalized unstructured massively parallel low Mach flow code designed to support a variety of energy applications of interest (most notably Wind ECP) built on the Sierra Toolkit and Trilinos solver Tpetra/Epetra stack. The open source BSD, clause 3 license model has been chosen for the code base. See LICENSE for more information. http://NaluCFD.org

#include <AuxFunction.h>

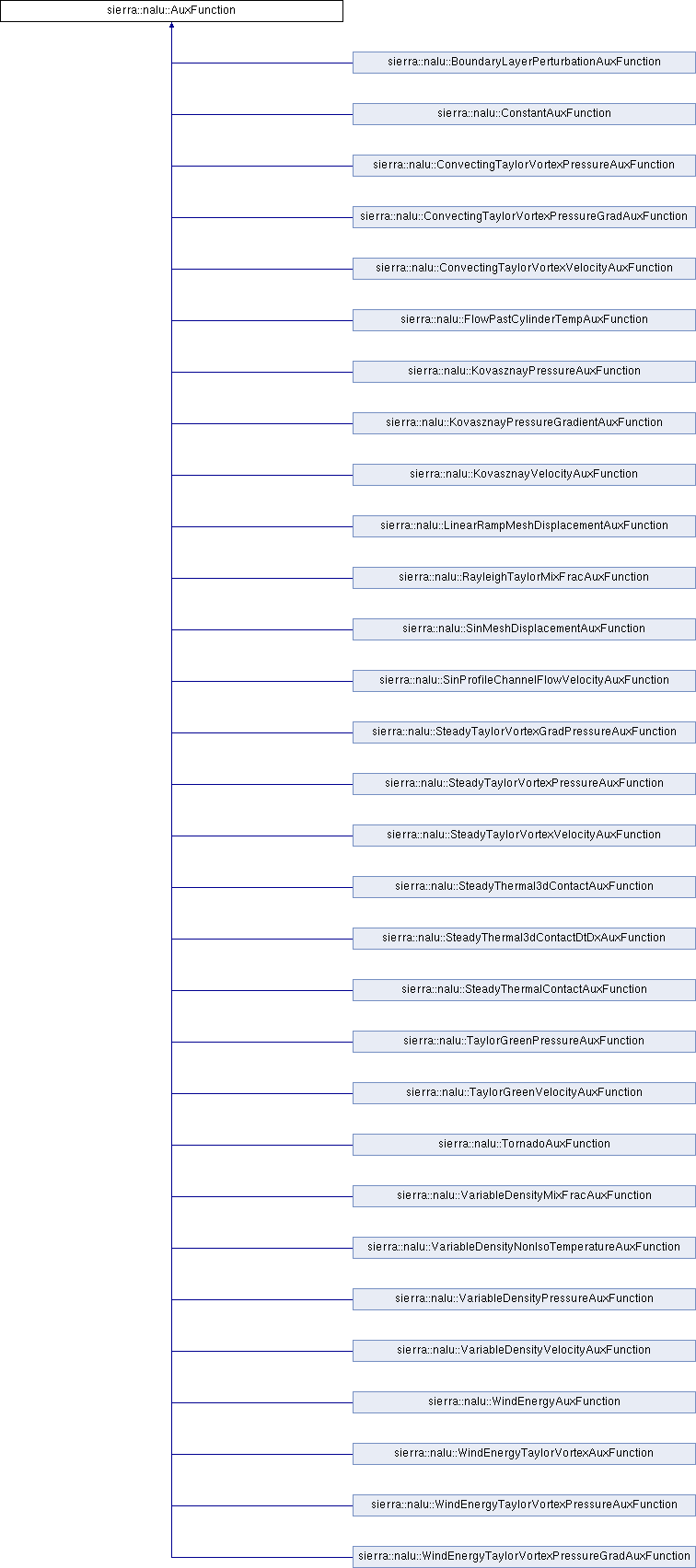

Inheritance diagram for sierra::nalu::AuxFunction:

Public Member Functions
	AuxFunction (const unsigned beginPos, const unsigned endPos)

virtual	~AuxFunction ()

void	evaluate (const double coords, const double time, const unsigned spatialDimension, const unsigned numPoints, double fieldPtr, const unsigned fieldSize) const

virtual void	setup (const double time)

Protected Attributes
const unsigned	beginPos_

const unsigned	endPos_

Private Member Functions
virtual void	do_evaluate (const double coords, const double time, const unsigned spatialDimension, const unsigned numPoints, double fieldPtr, const unsigned fieldSize, const unsigned beginPos, const unsigned endPos) const =0

virtual void	do_evaluate (const double coords, const double time, const unsigned spatialDimension, const unsigned numPoints, double fieldPtr, const unsigned fieldSize) const

Constructor & Destructor Documentation

sierra::nalu::AuxFunction::AuxFunction	(	const unsigned	beginPos,
		const unsigned	endPos
	)

inline

virtual sierra::nalu::AuxFunction::~AuxFunction ( )

inlinevirtual

Member Function Documentation

virtual void sierra::nalu::AuxFunction::do_evaluate	(	const double *	coords,
		const double	time,
		const unsigned	spatialDimension,
		const unsigned	numPoints,
		double *	fieldPtr,
		const unsigned	fieldSize,
		const unsigned	beginPos,
		const unsigned	endPos
	)		const

privatepure virtual

Implemented in sierra::nalu::WindEnergyTaylorVortexPressureGradAuxFunction, sierra::nalu::ConvectingTaylorVortexPressureGradAuxFunction, sierra::nalu::KovasznayPressureGradientAuxFunction, sierra::nalu::WindEnergyAuxFunction, sierra::nalu::ConstantAuxFunction, sierra::nalu::BoundaryLayerPerturbationAuxFunction, sierra::nalu::LinearRampMeshDisplacementAuxFunction, sierra::nalu::SinMeshDisplacementAuxFunction, sierra::nalu::WindEnergyTaylorVortexAuxFunction, sierra::nalu::ConvectingTaylorVortexVelocityAuxFunction, sierra::nalu::KovasznayVelocityAuxFunction, sierra::nalu::SinProfileChannelFlowVelocityAuxFunction, sierra::nalu::SteadyTaylorVortexGradPressureAuxFunction, sierra::nalu::SteadyTaylorVortexVelocityAuxFunction, sierra::nalu::SteadyThermal3dContactDtDxAuxFunction, sierra::nalu::TaylorGreenVelocityAuxFunction, sierra::nalu::VariableDensityVelocityAuxFunction, sierra::nalu::ConvectingTaylorVortexPressureAuxFunction, sierra::nalu::KovasznayPressureAuxFunction, sierra::nalu::RayleighTaylorMixFracAuxFunction, sierra::nalu::SteadyTaylorVortexPressureAuxFunction, sierra::nalu::SteadyThermal3dContactAuxFunction, sierra::nalu::SteadyThermalContactAuxFunction, sierra::nalu::TaylorGreenPressureAuxFunction, sierra::nalu::TornadoAuxFunction, sierra::nalu::VariableDensityMixFracAuxFunction, sierra::nalu::VariableDensityNonIsoTemperatureAuxFunction, sierra::nalu::VariableDensityPressureAuxFunction, sierra::nalu::WindEnergyTaylorVortexPressureAuxFunction, and sierra::nalu::FlowPastCylinderTempAuxFunction.

Referenced by do_evaluate(), evaluate(), and setup().

virtual void sierra::nalu::AuxFunction::do_evaluate	(	const double *	coords,
		const double	time,
		const unsigned	spatialDimension,
		const unsigned	numPoints,
		double *	fieldPtr,
		const unsigned	fieldSize
	)		const

inlineprivatevirtual

References do_evaluate().

void sierra::nalu::AuxFunction::evaluate	(	const double *	coords,
		const double	time,
		const unsigned	spatialDimension,
		const unsigned	numPoints,
		double *	fieldPtr,
		const unsigned	fieldSize
	)		const

inline

References beginPos_, do_evaluate(), and endPos_.

Referenced by sierra::nalu::AuxFunctionAlgorithm::execute().

virtual void sierra::nalu::AuxFunction::setup ( const double time )

inlinevirtual

Reimplemented in sierra::nalu::WindEnergyAuxFunction.

References do_evaluate().

Referenced by sierra::nalu::AuxFunctionAlgorithm::execute().

Member Data Documentation

const unsigned sierra::nalu::AuxFunction::beginPos_

protected

Referenced by evaluate().

const unsigned sierra::nalu::AuxFunction::endPos_

protected

Referenced by sierra::nalu::ConstantAuxFunction::ConstantAuxFunction(), and evaluate().

The documentation for this class was generated from the following file:

AuxFunction.h
